FA800S-5Axis

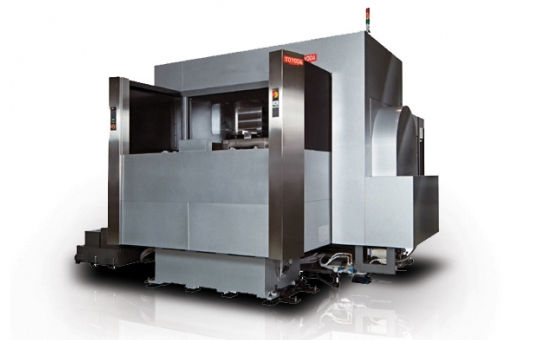

The FA800S 5-axis is a five-axis horizontal machining center designed for complex, large-part machining. This model excels in the toughest five-axis applications.
Se interessou? Peça seu orçamento
| Pallet Size | 31.5" x 31.5" (800 mm x 800 mm) |

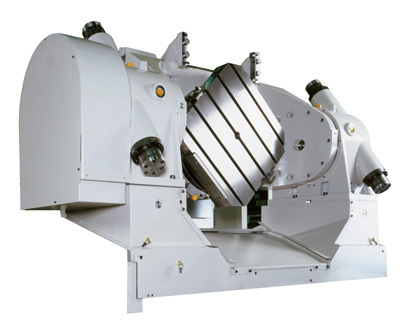

| Trunnion Table Index Increment (A-axis) | .0001 degree (-100° ~ +15°) |
| Trunnion Table Index Increment (B-axis) | .0001 degree |
| X-Axis Travel | 43.3” (1,100 mm) |
| Y-Axis Travel | 45.2” (1,150 mm) |
| Z-Axis Travel | 45.2” (1,150 mm) |
| Max Workpiece Swing | 62.99” (1,600 mm) |
| Max Workpiece Height | 51.18” (1,300 mm) |
| Maximum Work Load on the Pallet | 2,204 lb (1,000 kg) |
| Spindle Output Torque | 391 ft-lb (530 Nm) |
| Available Spindle | CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (Wide Range 530 Nm) |
| Rapid Feedrate (X axis) | 590 ipm (15 m/min) |
| Rapid Feedrate (Y axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Z axis) | 944 ipm (24 m/min) |
| Tool Storage Capacity | 60 Standard (120, 190, 240 Optional) |
| Standard Floor Space | 208” x 268” (5,290 mm x 6,800 mm) |
| Machine Height | 152" (3,865 mm) |
| Standard Net Weight | 77,162 lb (35,000 kg) |
