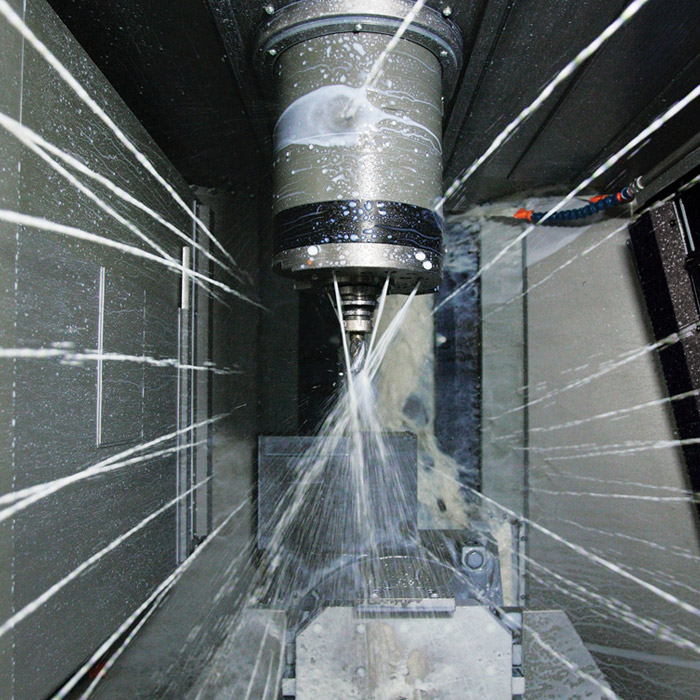

The FH400J is a compact, high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min).

Se interessou? Peça seu orçamento



Pallet Size15.75" x 15.75" (400 mm x 400 mm)
Table IndexFull NC table (360,000 positions)
X-Axis Travel23.62” (600 mm)
Y-Axis Travel22.05” (560 mm)
Z-Axis Travel24.80” (630 mm)
Max Workpiece Swing24.80” (630 mm)
Max Workpiece Height35.43" (900 mm)
Maximum Work Load on the Pallet880 lb (400 kg)
Spindle Output Torque123 ft-lb (167 Nm)
Available SpindleCAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
Rapid Feedrate (X axis)2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
Tool Storage Capacity60 Standard (119 Optional)
Standard Floor Space83" x 166" (2,100 mm x 4,205 mm)
Machine Height108" (27,735 mm)
Standard Net Weight24,200 lb (11,000 kg)
