FH1000SX

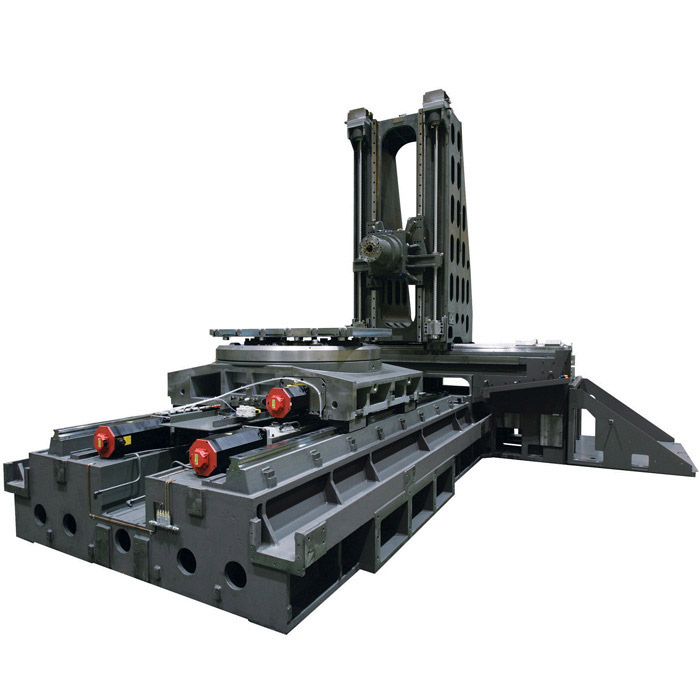

The FH1000SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 2,126 ipm (54 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base to suppress vibration in the heaviest of cuts.
Se interessou? Peça seu orçamento
Pallet Size | 39.4" x 31.5" (1,000 mm x 800 mm) |
Table Index | Full NC table (360,000 positions) |
X-Axis Travel | 63.0" (1,600 mm) |
Y-Axis Travel | 55.1" (1,400 mm) |
Z-Axis Travel | 72.8" (1,850 mm) |
Max Workpiece Swing | 70.87” (1,800 mm) |
Max Workpiece Height | 62.99” (1,600 mm) |
Maximum Work Load on the Pallet | 6,600 lb (3,000 kg) |
Spindle Output Torque | 391 ft-lb (530 Nm) |
Available Spindle | CAT#50 50HP 15,000 RPM (Wide Range 530 Nm) |
Rapid Feedrate (X axis) | 2,126 ipm (54 m/min) |
Rapid Feedrate (Y axis) | 2,126 ipm (54 m/min) |
Rapid Feedrate (Z axis) | 2,126 ipm (54 m/min) |
Tool Storage Capacity | 60 Standard (121 Optional) |
Standard Floor Space | 232" x 368" (5,900 mm x 9,350 mm) |
Machine Height | 159" (4,051 mm) |
Standard Net Weight | 68,343 lb (31,000 kg) |
Peça seu Orçamento
