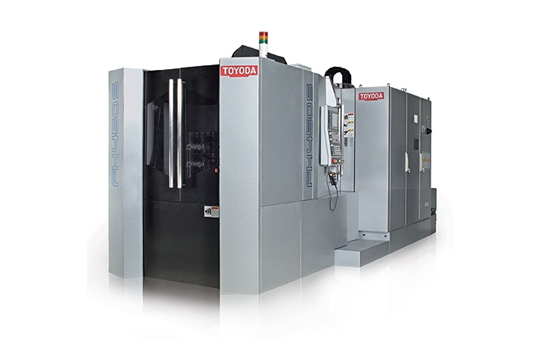

The FH450S is a high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of 1.3 seconds, and a rapid feedrate of 1,968 ipm (50 m/min).

Se interessou? Peça seu orçamento



Pallet Size17.7" x 17.7" (450 mm x 450 mm)
Table IndexFull NC table (360,000 positions)
X-Axis Travel23.62” (600 mm)
Y-Axis Travel23.62” (600 mm)
Z-Axis Travel23.62” (600 mm)
Max Workpiece Swing24.80” (630 mm)
Max Workpiece Height35.43" (900 mm)
Maximum Work Load on the Pallet880 lb (400 kg)
Spindle Output Torque123 ft-lb (167 Nm)
Available SpindleCAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
Available SpindleCAT#40 30 HP 20,000 RPM (0-20,000 in 2.4 sec)
Rapid Feedrate (X axis)1,968 ipm (50 m/min)
Rapid Feedrate (Y axis)1,968 ipm (50 m/min)
Rapid Feedrate (Z axis)1,968 ipm (50 m/min)
Tool Storage Capacity60 Standard (120 Optional)
Standard Floor Space100" x 243" (2,520 mm x 6,159 mm)
Machine Height125" (3,160 mm)
Standard Net Weight25,300 lb (11,500 kg)
