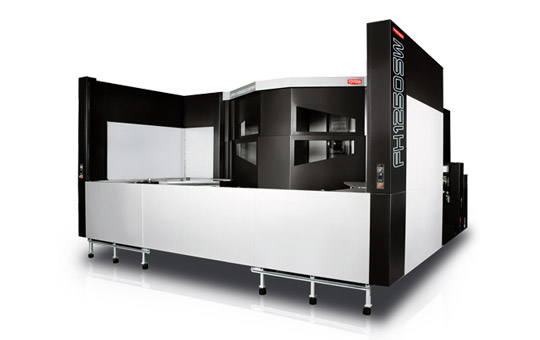

FH1250SW

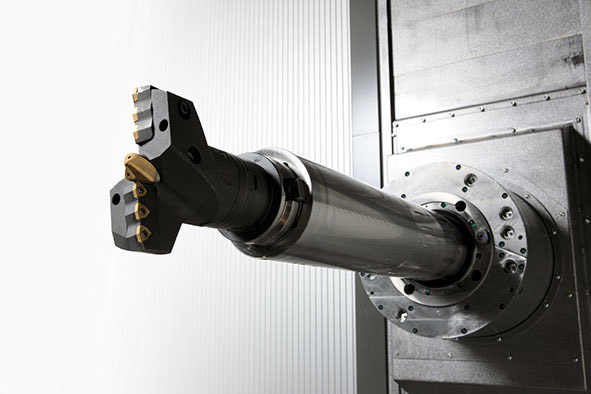

The FH1250SW is a quill-spindle horizontal machining center designed for heavy-duty operations. This machine’s unique 3,000 RPM spindle is ideal for boring and deep drilling, allowing workpieces previously requiring two operations to be completed on a single machine.
Se interessou? Peça seu orçamento
| Pallet Size | 49.2" x 49.2" (1,250 mm x 1,250 mm) |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 86.6" (2,200 mm) |
| Y-Axis Travel | 59” (1,500 mm) |
| Z-Axis Travel | 72.8" (1,850 mm) |

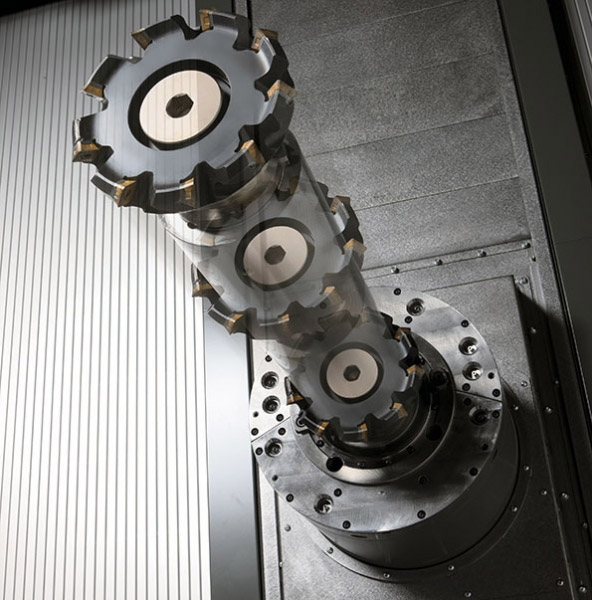

| W-Axis Travel | 21.6" (550 mm) |
| Max Workpiece Swing | 84.49” (2,400 mm) |
| Max Workpiece Height | 70.87” (1,800 mm) |
| Maximum Work Load on the Pallet | 11,000 lb (5,000 kg) |
| Spindle Output Torque | 968 ft-lb (1,313 Nm) |
| Available Spindle | CAT#50 60HP 3,000 RPM (1,313 Nm) 5.1" x 21.65" Quill Boring Bar |
| Rapid Feedrate (X axis) | 1,260 ipm (32 m/min) |
| Rapid Feedrate (Y axis) | 1,260 ipm (32 m/min) |
| Rapid Feedrate (Z axis) | 1,654 ipm (42 m/min) |
| Tool Storage Capacity | 60 Standard (121 Optional) |
| Standard Floor Space | 293" x 390" (7,450 mm x 9,900 mm) |
| Machine Height | 178" (4,520 mm) |
| Standard Net Weight | 109,129 lb (49,500 kg) |
