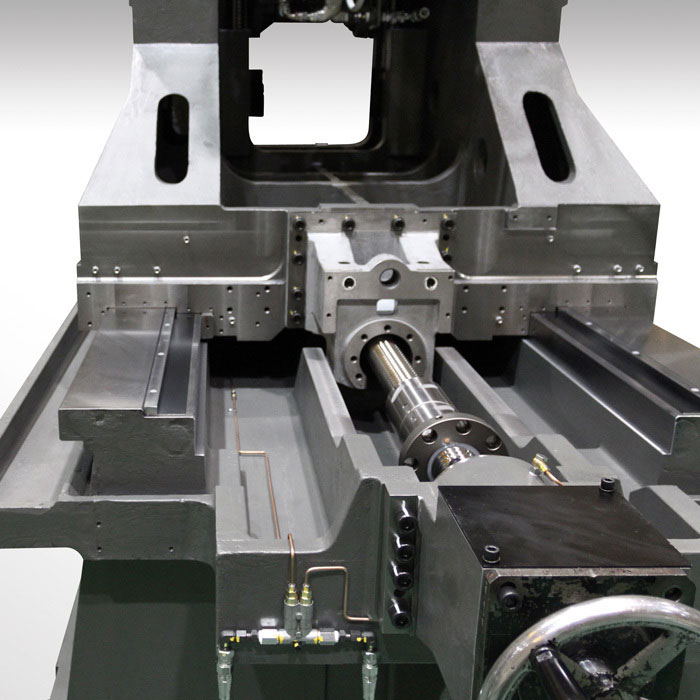

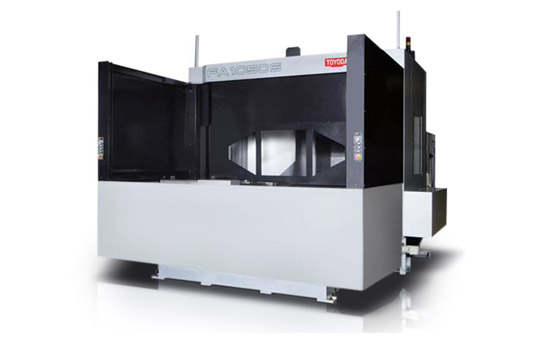

The FA1050S is a heavy-duty horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 944 ipm (24 m/min). The machine’s box guideways, robust column and bed, and large workpiece swing allow for powerful machining with high accuracy.

Se interessou? Peça seu orçamento



Pallet Size41.3" x 41.3" (1,050 mm x 1,050 mm)
Table IndexRotary table (1 degree)
X-Axis Travel63” (1,600 mm)
Y-Axis Travel55.1” (1,400 mm)
Z-Axis Travel45.2” (1,150 mm)
Max Workpiece Swing72.83” (1,850 mm)
Max Workpiece Height61.02” (1,550 mm)
Maximum Work Load on the Pallet6,600 lb (3,000 kg)
Spindle Output Torque391 ft-lb (530 Nm)
Available SpindleCAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis)944 ipm (24 m/min)
Rapid Feedrate (Y axis)944 ipm (24 m/min)
Rapid Feedrate (Z axis)944 ipm (24 m/min)

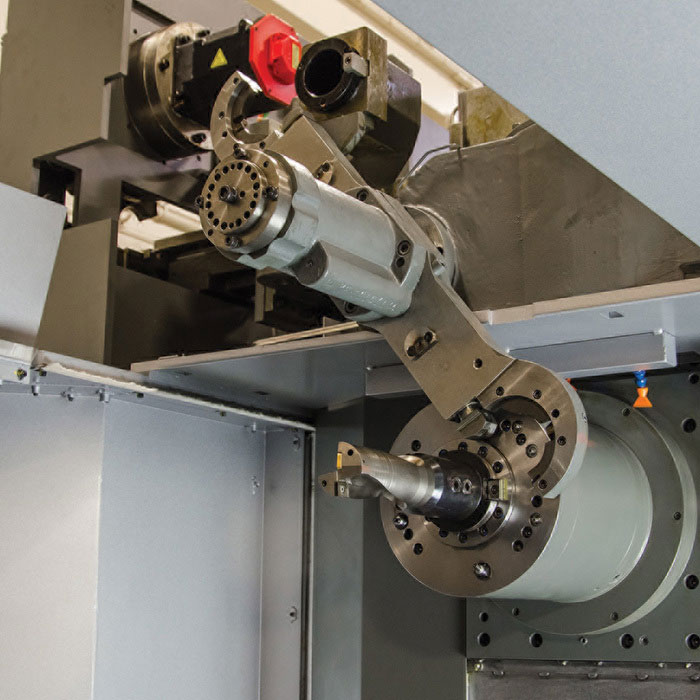

Tool Storage Capacity60 Standard (120, 190, 240 Optional)
Standard Floor Space215" x 320" (5,460 mm x 8,140 mm)
Machine Height161" (4,100 mm)
Standard Net Weight66,139 lb (30,000 kg)
