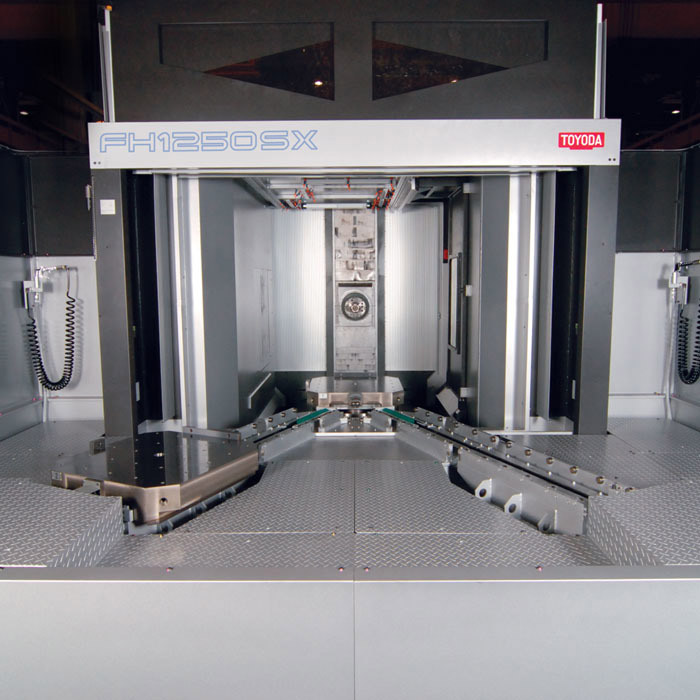

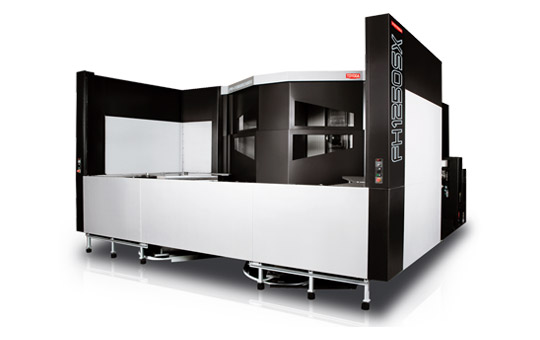

FH1250SX
The FH1250SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 1,654 ipm (42 m/min). This machine has cylindrical roller guides for increased speed, and dual ballscrew drive on the Y and Z axes and a Meehanite cast iron base for maximum rigidity.
Se interessou? Peça seu orçamento
| Pallet Size | 49.2" x 49.2" (1,250 mm x 1,250 mm) |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 86.6" (2,200 mm) |
| Y-Axis Travel | 63” (1,600 mm) |
| Z-Axis Travel | 72.8" (1,850 mm) |
| Max Workpiece Swing | 84.49” (2,400 mm) |
| Max Workpiece Height | 70.87” (1,800 mm) |

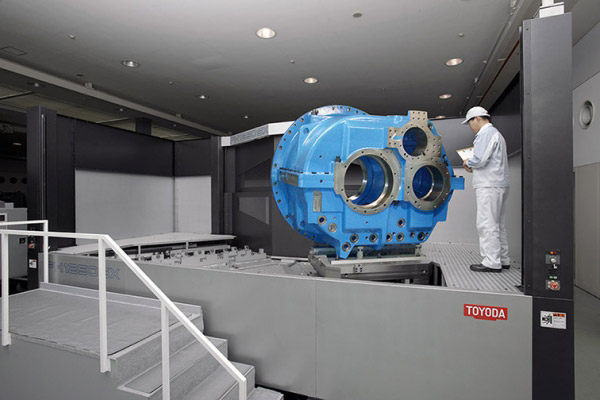

| Maximum Work Load on the Pallet | 11,000 lb (5,000 kg) |
| Spindle Output Torque | 391 ft-lb (530 Nm) |
| Spindle Output Torque | 391 ft-lb (530 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (Wide Range 530 Nm) |
| Available Spindle | CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm) |
| Rapid Feedrate (X axis) | 1,654 ipm (42 m/min) |
| Rapid Feedrate (Y axis) | 1,654 ipm (42 m/min) |
| Rapid Feedrate (Z axis) | 1,654 ipm (42 m/min) |
| Tool Storage Capacity | 60 Standard (121 Optional) |
| Standard Floor Space | 244" x 389" (6,200 mm x 9,900 mm) |
| Machine Height | 178" (4,520 mm) |
| Standard Net Weight | 105,821 lb (48,000 kg) |
