FA800S

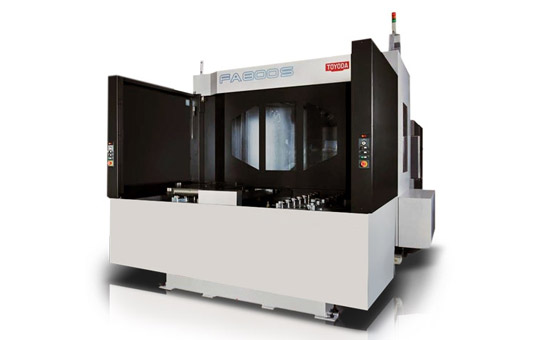

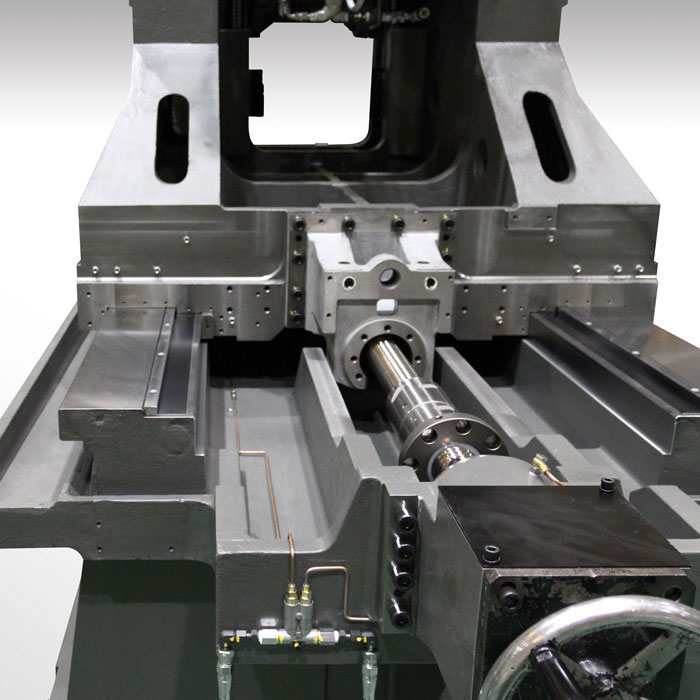

The FA800S is a heavy-duty horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 944 ipm (24 m/min). The machine’s robust column and bed, box guideways, and large workpiece swing allow for powerful machining with high accuracy.
Se interessou? Peça seu orçamento
| Pallet Size | 31.5" x 31.5" (800 mm x 800 mm) |
| Table Index | Rotary table (1 degree) |
| X-Axis Travel | 53.1” (1,350 mm) |
| Y-Axis Travel | 45.2” (1,150 mm) |
| Z-Axis Travel | 45.2” (1,150 mm) |
| Max Workpiece Swing | 62.99” (1,600 mm) |
| Max Workpiece Height | 51.18” (1,300 mm) |
| Maximum Work Load on the Pallet | 5,500 lb (2,500 kg) |
| Spindle Output Torque | 391 ft-lb (530 Nm) |
| Available Spindle | CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (Wide Range 530 Nm) |
| Rapid Feedrate (X axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Y axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Z axis) | 944 ipm (24 m/min) |
| Tool Storage Capacity | 60 Standard (120, 190, 240 Optional) |
| Standard Floor Space | 130" x 291" (5,115 mm x 7,400 mm) |
| Machine Height | 166" (4,210 mm) |
| Standard Net Weight | 61,100 lb (27,714 kg) |
