FH1250SX-5Axis

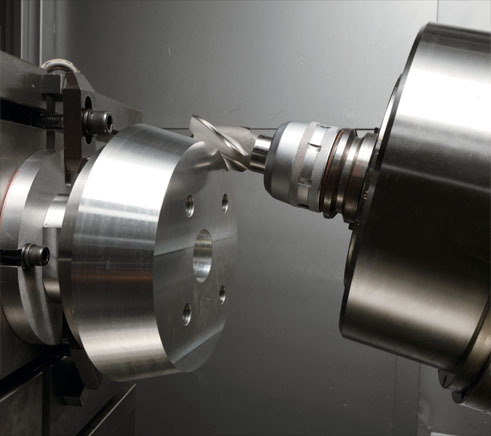

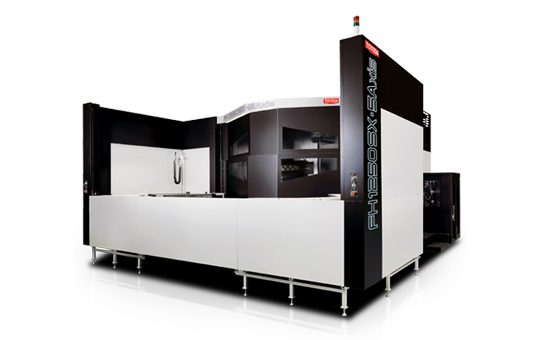

The FH1250SX 5-axis is a five-axis horizontal machining center designed for complex, large part machining. It features a 15,000 RPM integral tilting spindle and rapid feedrates of 1,260 ipm (32 m/min) on the X and Y axes and 1,654 ipm (42 m/min) on the Z axis.
Se interessou? Peça seu orçamento
| Pallet Size | 49.2" x 49.2" (1,250 mm x 1,250 mm) |

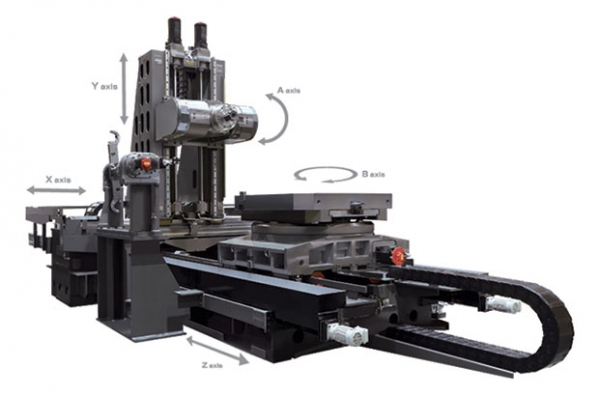

| Tilt Spindle (A-axis) | -100° ~ +45° |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 86.6" (2,200 mm) |
| Y-Axis Travel | 63” (1,600 mm) |
| Z-Axis Travel | 72.8" (1,850 mm) |
| Max Workpiece Swing | 84.49” (2,400 mm) |
| Max Workpiece Height | 70.87” (1,800 mm) |
| Maximum Work Load on the Pallet | 11,000 lb (5,000 kg) |
| Spindle Output Torque | 295 ft-lb (400 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (High Torque 400 Nm) |
| Rapid Feedrate (X axis) | 1,260 ipm (32 m/min) |
| Rapid Feedrate (Y axis) | 1,260 ipm (32 m/min) |
| Rapid Feedrate (Z axis) | 1,654 ipm (42 m/min) |
| Tool Storage Capacity | 60 Standard (121 Optional) |
| Standard Floor Space | 249" x 394" x 178" (6,320 mm x 10,000 mm x 4,520 mm) |
| Machine Height | 178" (4,520 mm) |
| Standard Net Weight | 109,100 lb (49,500 kg) |
