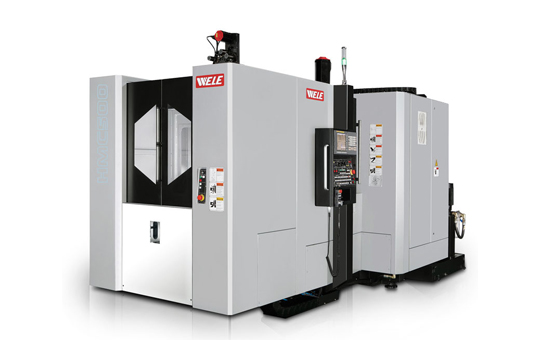

HMC500

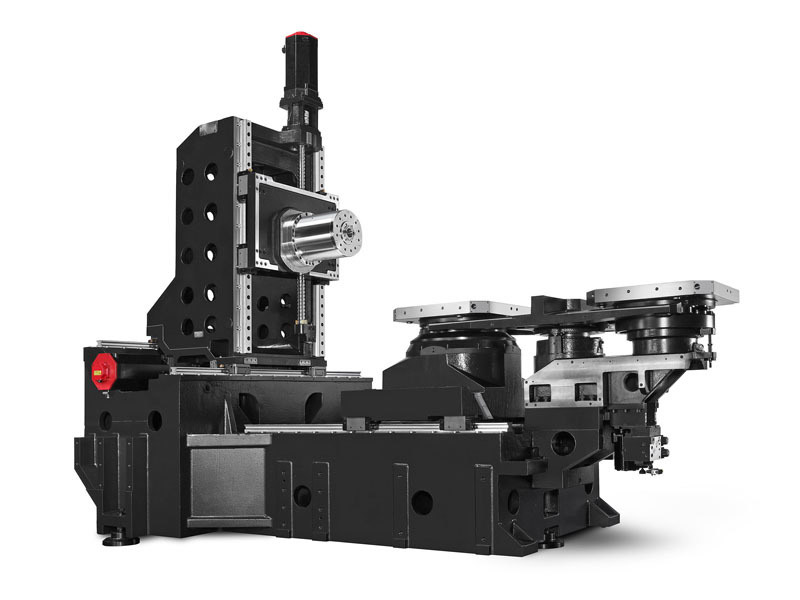

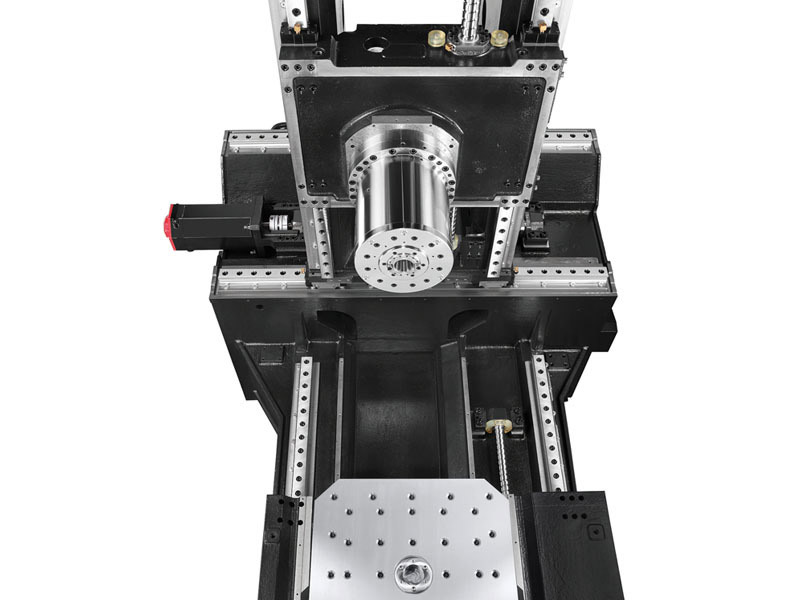

A step up from a 400 mm size machine, the Wele HMC500 offers larger work envelope and superior production value for high-speed operations. The HMC500 features a 30 HP, 15,000 RPM built-in motor style, with 3.3 seconds ramp up 0 to 15,000 high-speed spindle makes the most of your production.
Se interessou? Peça seu orçamento
| Pallet Size | 19.68" x 19.68" (500 mm x 500 mm) |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 25.2” (650 mm) |
| Y-Axis Travel | 24” (610 mm) |
| Z-Axis Travel | 26.8” (680 mm) |
| Max Workpiece Swing | 29.5” (630 mm) |
| Max Workpiece Height | 35.43" (900 mm) |
| Maximum Work Load on the Pallet | 1,100 lb (500 kg) |
| Spindle Output Torque | 123 ft-lb (167Nm) |
| Available Spindle | CAT#40 30HP 15,000 RPM (3.3 sec ramp 0 to 15,000) |
| Rapid Feedrate (X axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) | 2,362 ipm (60 m/min) |
| Tool Storage Capacity | 60 Standard |
| Standard Floor Space | 104.33" x 181.22" (2,650 mm x 4,603 mm) |
| Machine Height | 115.59" (2,936 mm) |
| Standard Net Weight | 25,350 lb (11,500 kg) |
