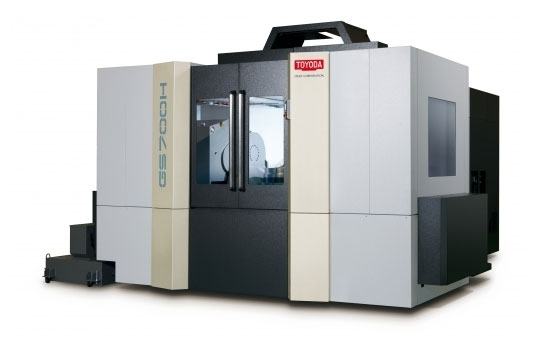

GS700H

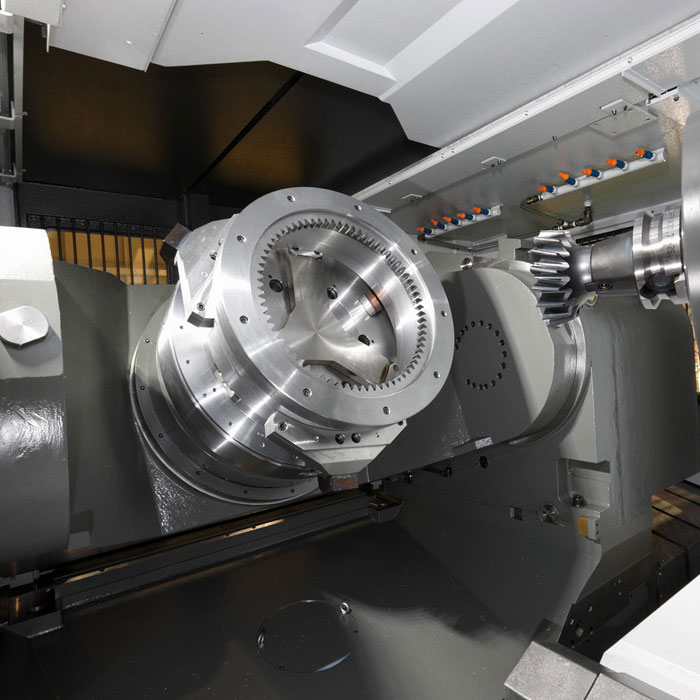

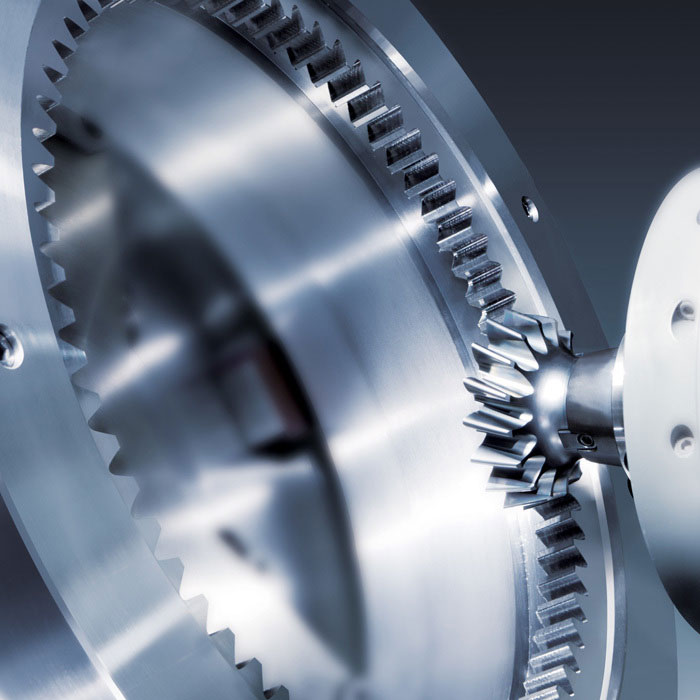

Toyoda’s Multitasking Horizontal Machining Center is the first in the world to equip a skiving function to a general purpose horizontal type machining center to achieve mass production of gear parts. The GS700H offers improved productivity and flexible machining through high speed cutting and integrated gear part processes of lathe, gear skiving and machining center capabilities. Offering continuous machining on the shop floor, the GS700H ultimately reduces equipment and cutting tools utilized.
Se interessou? Peça seu orçamento
| X-Axis Travel | 35.4" (900 mm) |
| Y-Axis Travel | 33.5" (850 mm) |
| Z-Axis Travel | 35.4" (900 mm) |
| Tilt Spindle (A-axis) | 100° (+5° ~ -95°) |
| Rapid Feedrate | 20 m/min (X); 36 m/min (Y,Z) |
| Spindle Nose Shape | BBT No.50 (Opt. HSK-A100) |
| Spindle Speed | 50 ~ 6,000 min-1 |
| Spindle Drive Motor (30 min. / cont.) | 40 HP (30 kW) / 30 HP (22 kW) |
| Rotating Speed | 1,000 min-1 |
| Rated Output | 67 HP (50 kW) / 23 HP (17.5 kW) |
| Torque max. / cont. | 1,106 ft-lb (708 Nm) / 1,500 ft-lb (960 Nm) |
| Max Workpiece Swing | ⌀53" (⌀1,346 mm) |
| Length | 19.69" (500 mm) or less |
| Max Workpiece Diameter | 27.56" (700 mm) |
| Tool Storage Capacity | 40 Standard (Opt. 60, 120) |
| Standard Floor Space | 205" x 244" (5,200 mm x 6,200 mm) |
| Machine Height | 146" (3,700 mm) |
| Standard Net Weight | 66,000 lb (30,000 kg) |
