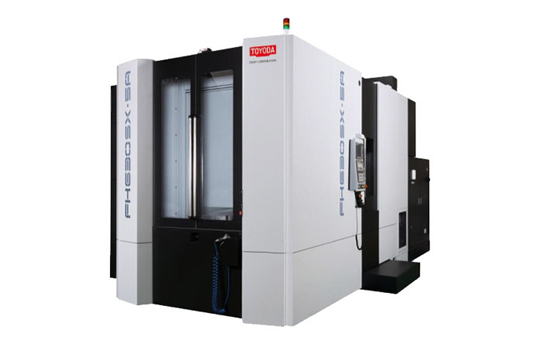

FH630SX-i 5-Axis
Developed best-in-class 5-axis machine for a 630 mm platform, the FH630SX-i 5-Axis is designed for complex part machining. It features an 8,000 RPM high-torque spindle, with the option of a 15,000 RPM high-power, multi-use spindle, and a replaceable taper design for high maintainability. The tilting spindle comes with a robust C-axis drive train and an enlarged C-axis swivel range of 230 degrees for wider components.
Se interessou? Peça seu orçamento
| Pallet Size | 24.8" x 24.8" (630 mm x 630 mm) |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 31.5” (800 mm) |
| Y-Axis Travel | 33.46” (850 mm) |
| Z-Axis Travel | 41.33” (1,050 mm) |
| Max Workpiece Swing | 46.06” (1,170 mm) |
| Max Workpiece Height | 62.99" (1,600 mm) |
| Maximum Work Load on the Pallet | 3,306 lb (1,500 kg) |
| Spindle Output Torque | 802 ft-lb (1,088 Nm) |
| Available Spindle | CAT#50 107HP 8,000 RPM (1088 Nm) |
| Available Spindle | CAT#50 74HP 15,000 RPM (526 Nm) |
| Rapid Feedrate (X axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) | 2,362 ipm (60 m/min) |
| Tool Storage Capacity | 60 Standard |
| Standard Floor Space | 170.1" x 266.3" (4,320 mm x 6,800 mm) |
| Machine Height | 130" (3,308 mm) |
| Standard Net Weight | 50,700 lb (23,000 kg) |
