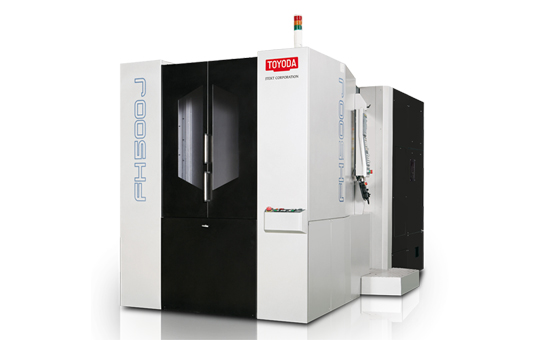

FH500J
The FH500J and FH500J-50 are compact, high-speed horizontal machining centers featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min).

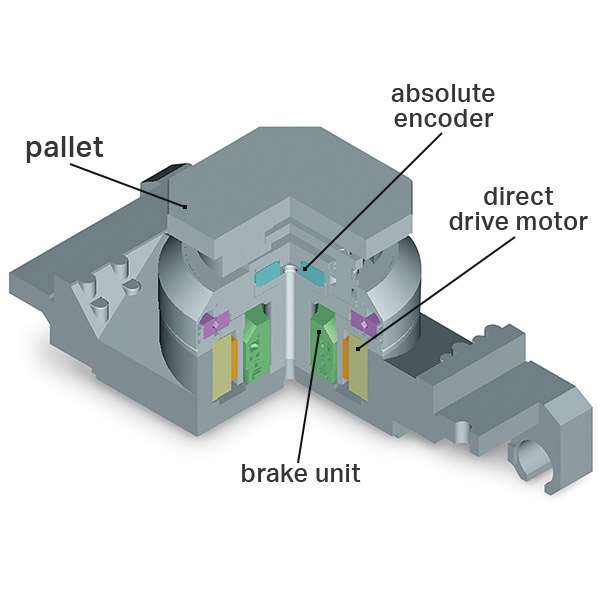

All FH500J models (#40 & #50) taper are equipped with a Direct Drive B Axis Table, featuring an index time (90 degrees) of 0.5 seconds and 360,000 degree positioning.
Se interessou? Peça seu orçamento
| Pallet Size | 19.68" x 19.68" (500 mm x 500 mm) |
| Table Index | Full NC table (360,000 positions) |
| X-Axis Travel | 28.74” (730 mm) |
| Y-Axis Travel | 28.74” (730 mm) |
| Z-Axis Travel | 33.46” (850 mm) |
| Max Workpiece Swing | 31.50” (800 mm) |
| Max Workpiece Height | 39.37" (1,000 mm) |
| Maximum Work Load on the Pallet | 1,540 lb (700 kg) |
| Spindle Output Torque | 295 ft-lb (400 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (High Torque 303 Nm) |
| Rapid Feedrate (X axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) | 2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) | 2,362 ipm (60 m/min) |
| Tool Storage Capacity | 60 Standard (119 Optional) |
| Standard Floor Space | 91.73" x 182.28" (2,330 mm x 4,630 mm) |
| Machine Height | 113" (2,870 mm) |
| Standard Net Weight | 29,700 lb (13,500 kg) |
