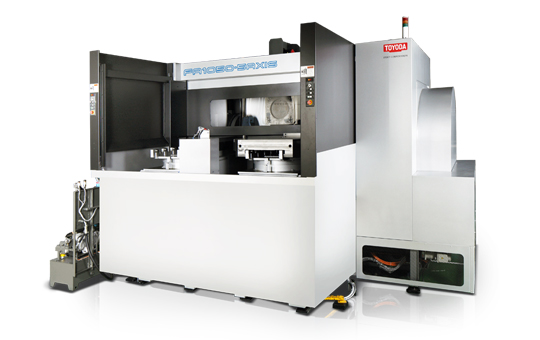

FA1050S-5Axis

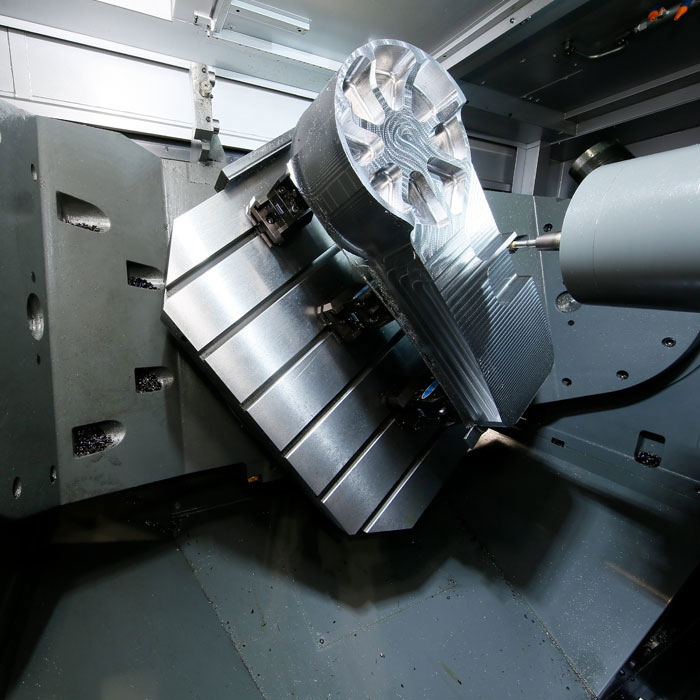

Five-axis machining is achieved with the FA1050S 5-Axis trunnion table. Its dual-drive mechanisms support heavy workpieces, while the high-resolution rotary encoders ensure precise positioning during simultaneous five-axis applications.
Se interessou? Peça seu orçamento
| Pallet Size | 41.3" x 41.3" (1,050 mm x 1,050 mm) |
| Trunnion Table Index Increment (A-axis) | .0001 degree (-100° ~ +15°) |
| Trunnion Table Index Increment (B-axis) | .0001 degree |
| X-Axis Travel | 59.1" (1,500 mm) |
| Y-Axis Travel | 55.1" (1,400 mm) |
| Z-Axis Travel | 45.2” (1,150 mm) |
| Max Workpiece Swing | 51.18” (1,300 mm) |
| Max Workpiece Height | 32.48” (825 mm) |
| Maximum Work Load on the Pallet | 4,400 lb (2,000 kg) |
| Spindle Output Torque | 391 ft-lb (530 Nm) |
| Available Spindle | CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm) |
| Available Spindle | CAT#50 50HP 15,000 RPM (Wide Range 530 Nm) |
| Rapid Feedrate (X axis) | 590 ipm (15 m/min) |
| Rapid Feedrate (Y axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Z axis) | 944 ipm (24 m/min) |
| Tool Storage Capacity | 60 Standard (190, 240, 384 Optional) |
| Standard Floor Space | 276" x 331" (7,000 mm x 8,400 mm) |
| Machine Height | 161" (4,100 mm) |
| Standard Net Weight | 112,436 lbs (51,000 kg) |
