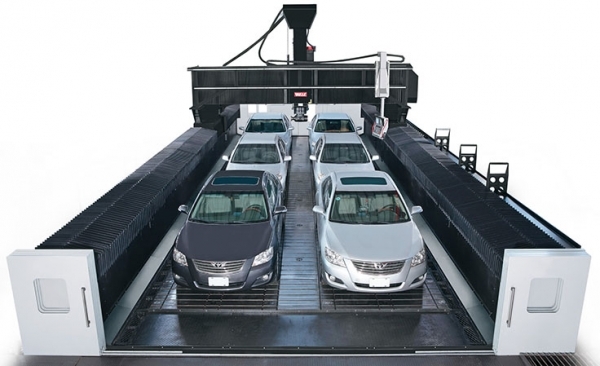

The MG830 is universal, moving gantry machine for ultra-heavy applications requiring tight tolerances. This machine features roller guides for speed, twin linear scales for positioning accuracy, and an ergonomic design for easy operability. The option of additional heads can give this model five-face machining capabilities.

Se interessou? Peça seu orçamento



Table Size315" x 110.2" (8,000 mm x 2,800 mm)
X-Axis Travel315" (8,000 mm)
Y-Axis Travel118" (3,000 mm)
Z-Axis Travel39.4" (1,000 mm)
Optional Z-axis Travel47.3" (1,200 mm), 55.2" (1,400 mm)
Maximum Table Load1,680 lb/ft2 (2,500 kg/m2)
Spindle Drive Motor (30 min. / cont.)6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Drive Motor (30 min. / cont.)5,000 RPM: 40 HP (29.8 kW) / 35 HP (26 kW)
Spindle Output Torque6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Output Torque5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle SpeedGearbox (CAT50): 6,000 RPM
Spindle SpeedGearbox (CAT50): 5,000 RPM
Rapid Feedrate (X axis)394 ipm (10 m/min)
Rapid Feedrate (Y axis)708 ipm (18 m/min)
Rapid Feedrate (Z axis)472 ipm (12 m/min)
Tool Storage Capacity32 Standard (60 Optional)
Standard Floor Space562" x 258" x 165" (14,275 mm x 6,560 mm x 4,200 mm)
Standard Net Weight227,076 lb (103,000 kg)
