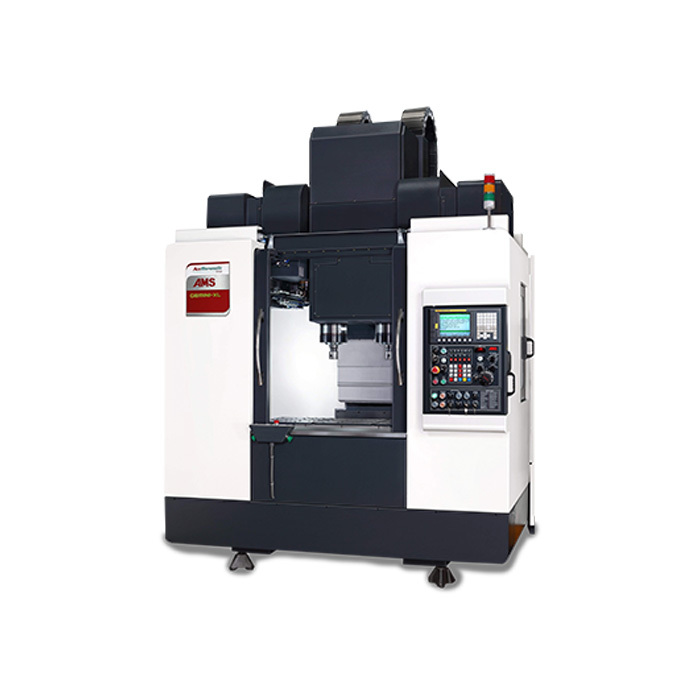

Gemini XL
Twin spindle machines are advantageous as they occupy less floor space as compared to single spindle machining solutions. The machines are built on sturdy structures housing two spindles that are precisely assembled to obtain high accuracy. The twin spindle machines have gained popularity in the automotive industry due to its suitability for high volume production.
Se interessou? Peça seu orçamento
| Table Size | 47.24" x 18.9" (1,200 mm x 480 mm) |
| X-Axis Travel | 23.6" (600 mm) |
| Y-Axis Travel | 17.7" (450 mm) |
| Z-Axis Travel | 23.6" (600 mm) |
| Maximum Table Load | 800 kgf |
| Spindle Drive Motor | 20 HP |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Tool Storage Capacity | 20 |
| CNC Controller | Fanuc 0iMF |
| Chip to Chip Time | 5.5 sec |
