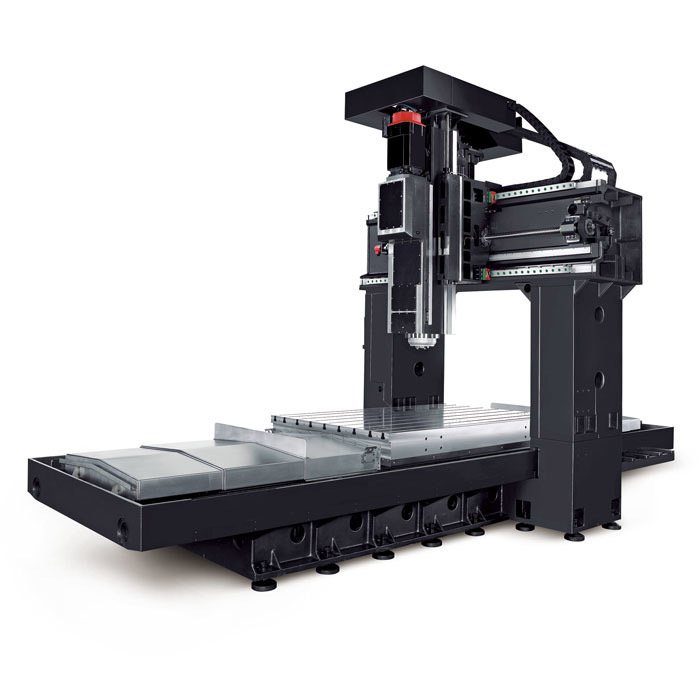

Stealth VB215
The Stealth VB215 is fixed rail bridge machine designed for heavy cutting applications. This machine features roller guides, a hydraulic counterbalance system on the headstock, and a powerful spindle. These features allow for highly precise and accurate cuts without sacrificing speed.
Se interessou? Peça seu orçamento
| Table Size | 82.6"x 55.1" (2,100 mm x 1,400 mm) |
| X-Axis Travel | 79.5" (2,020 mm) |
| Y-Axis Travel | 59" (1,500 mm) |
| Z-Axis Travel | 31.5" (800 mm) |
| Distance from Spindle Nose to Table Top | 7.9" to 39.4" (200 mm to 1,000 mm) |
| Distance Between Columns | 62.9" (1,600 mm) |
| Maximum Table Load | 17,600 lb (8,000 kg) |
| Spindle Drive Motor (30 min. / cont.) | 35 HP (26 kW) / 30 HP (22 kW) |
| Spindle Output Torque | 461 ft-lb (626.2 Nm) |
| Spindle Speed | Gearbox (CAT50): 6,000 RPM |
| Rapid Feedrate (X axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Y axis) | 944 ipm (24 m/min) |
| Rapid Feedrate (Z axis) | 590 ipm (15 m/min) |
| Maximum Cutting Feedrate | 394 ipm (10 m/min) |
| 394 ipm (10 m/min) | 32 Standard (60 Optional) |
| Standard Floor Space | 317" x 179" x 163" (8,058 mm x 4,550 mm x 4,128 mm) |
| Standard Net Weight | 44,000 lb (20,000 kg) |
| Chip Conveyor | Hinged Belt Lift Up type, 47" Drop Height from floor |
